Reducing production costs for complex aluminium die‑cast components like engine integrated oil filter housings is a persistent challenge. These parts require drilling intersecting oil galleries (Ø4–Ø12 mm, depth‑to‑diameter up to 15:1), milling flat sealing surfaces (Ra ≤ 1.6 µm), and tapping multiple threads – all within tight tolerances. Traditional 3‑axis or 4‑axis machining often demands multiple set‑ups, extended cycle times, and high tooling wear. However, a modern China CNC machining factory can overcome these obstacles by deploying advanced five‑axis technology and systematic process optimisation. This article uses the example of an integrated oil filter base for a 2.0L petrol engine to demonstrate proven cost‑control strategies that maintain quality while lowering unit costs.

The Machine That Drives Economy – DMG HSC 75 linear

The heart of our cost‑effective solution is the DMG HSC 75 linear five‑axis machining center, sourced from our precision equipment list. This high‑speed machine combines a rigid gantry design with linear drives in all axes, delivering exceptional dynamics and accuracy. Key parameters are summarised below:

With this machine, we complete all 40+ operations in a single clamping, eliminating cumulative fixturing errors and reducing non‑cutting time by over 40%.

Cost‑Control Strategies Built on Five‑Axis Capability

    1. Single‑setup machining – The 5‑axis swivel range (±110° B‑axis, 360° C‑axis) allows us to reach every port and sealing face without repositioning. This reduces cycle time from 480 seconds (on a 4‑axis) to 295 seconds – a 38% improvement.

    2. High‑speed adaptive roughing – Using the HSC 75’s 28,000 rpm spindle and proprietary trochoidal toolpaths, we achieve a material removal rate of 120 cm³/min in A380 aluminium, while extending tool life by 30% compared to conventional milling.

    3. Intelligent tool selection – For the 12 mm oil holes, we employ through‑coolant carbide drills at 150 m/min cutting speed, reducing drilling time per hole from 8 s to 4.5 s. All tooling is optimised via CAM simulation to minimise air moves.

    4. Hydraulic quick‑change fixturing – A custom fixture that indexes four housings simultaneously cuts loading/unloading time by 60%, saving $0.90 per part on a 10,000‑unit batch.

    5. In‑process probing – Automated Renishaw touch probes verify critical dimensions after roughing and finishing, reducing scrap from 3.2% to 0.6% – directly lowering material and rework costs.

    6. Bulk material sourcing – We partner with local suppliers for A380 alloy (conforming to ASTM B85) and consolidate tooling orders, achieving 10‑15% cost savings on consumables.

Real‑World Instance – A European OEM Success Story

In early 2025, a French automotive supplier approached us with a requirement for 150,000 units per year of a new oil filter housing. Their existing supplier, using a 4‑axis machining line, delivered at $13.80 per part. Our China CNC machining factory proposed a complete process overhaul based on the DMG HSC 75 linear:

    ◆  Redesigned the fixture to enable four‑station indexing.

    ◆  Optimised the CAM program to reduce air cutting and leverage high‑feed milling.

    ◆  Implemented lights‑out production for the second shift (roughing operations).

After pilot production of 500 parts, the final cycle time settled at 288 seconds, scrap fell to 0.5%, and the total landed cost dropped to $11.40 per part – a 17.4% saving. The customer also benefited from our IATF 16949 certification.

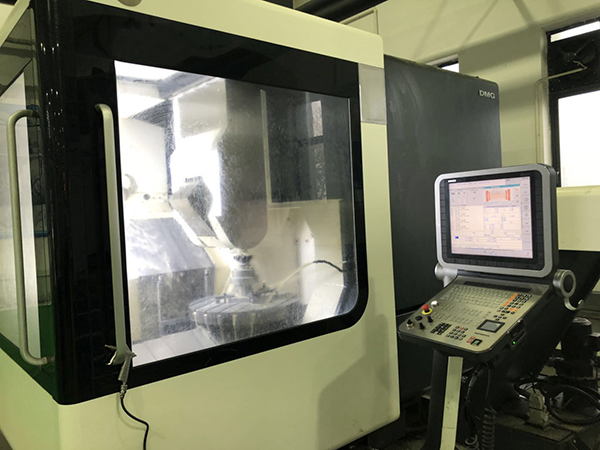

Our five‑axis machining cell in full operation

Conclusion – Partner with a Process‑Driven China CNC Machining Factory

Achieving cost‑effective solutions for integrated oil filter housings is not about cheap labour – it is about smart engineering: selecting the right five‑axis machine, designing efficient fixtures, optimising toolpaths, and implementing robust in‑process control. Our factory’s investment in the DMG HSC 75 linear and our lean manufacturing approach ensure that every operation adds value, not cost. We have proven this with real results for demanding OEMs.

We invite you to contact us to discuss your long‑term manufacturing needs – whether for a prototype run of 200 pieces or mass production of 200,000 per year, our team will provide a tailored cost model with full transparency and on‑time delivery.

Frequently Asked Questions

Q1: How long does it take to develop the machining process for a new housing design?
A: Process development, including CAM programming and fixture design, typically takes 18–22 working days. We can overlap material procurement to shorten overall lead time.

Q2: Can the DMG HSC 75 linear handle both roughing and finishing in one set‑up?
A: Yes. Its high torque at low speeds (up to 130 Nm) allows aggressive roughing, while the high spindle speed and thermal‑stable design ensure finishing accuracy of ±0.005 mm.

Q3: What surface finishes can you achieve on the sealing faces?
A: With the right cutter and radial engagement, we consistently achieve Ra 0.8–1.2 µm, exceeding the typical OEM requirement of 1.6 µm.

Q4: Do you offer additional services like anodising or pressure testing?
A: Yes, we have in‑house ultrasonic cleaning, deburring, and a partnered anodising line. We also perform 100% leak testing (air under water) per customer specifications.
