Modern electric vehicles demand production-ready solutions that combine strength, heat management, and crash safety. Within every battery tray assembly, a network of precision CNC turning parts—including threaded inserts, alignment bushings, sealing plugs, and coolant connectors—ensures the pack stays securely mounted, electrically isolated, and leak-tight. This article highlights the critical turning components and machining strategies that drive reliable EV battery tray production.

Essential Turned Components in a Battery Tray

While the tray enclosure may be a large extrusion or stamping, its real-world performance hinges on smaller precision turned parts:

● Threaded Inserts & Bosses: Provide strong, repeatable fastening points for module brackets and underbody attachment.

● Coolant Port Fittings: Enable precise fluid flow and zero-leak connections in liquid-cooled packs.

● Alignment Dowels & Bushings: Guarantee assembly accuracy between tray, modules, and cover.

● Electrical Isolation Standoffs: Maintain creepage and clearance distances critical for high-voltage safety.

All these components must hold tight tolerances—often within ±0.01 mm—to ensure a perfect fit and long-term reliability.

Material Choices That Define Performance

Most turned parts for battery trays are machined from aluminum alloys. 6061-T6 is common for bushings and bosses due to its excellent machinability and corrosion resistance. For high-stress inserts, 7075-T6 aluminum provides tensile strength comparable to mild steel at a third of the weight. Where extreme wear or galvanic isolation is required, stainless steel 304 and brass alloys are selected. As noted by International Aluminum Institute, the shift to closed-loop recycling is making aluminum turned parts even more sustainable.

Machining Challenges and Optimizations

Turning small, thin-walled parts introduces vibration and dimensional drift. To counter this, CNC turning centers with live tooling and sub-spindles complete complex geometries in one clamping, preserving concentricity. High-pressure coolant and harmonic damping bars control chatter during deep boring of bushings. When working with high-silicon aluminum castings, abrasive wear is managed by polycrystalline diamond (PCD) inserts, which can outlast carbide by a factor of ten. For detailed tooling data, refer to Machining of Aluminum and Aluminum Alloys.

Inline Quality & Process Control

Every turned part can impact battery safety. That’s why manufacturers implement 100% inspection using laser micrometers and in-machine probing. Measured values feed directly to the CNC control for automatic tool offset correction, maintaining CpK values above 1.67. Vision systems check for burr-free edges that could compromise electrical insulation. The following image shows a typical setup for turning a high-precision battery tray bushing.

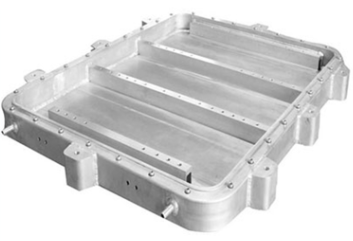

Turning battery tray

Why Precision Turning Matters for the EV Era

As cell-to-pack and structural battery designs evolve, tray-mounted turned parts must carry greater mechanical loads while remaining lightweight. Precision CNC turning parts provide the repeatability and speed needed for high-volume EV production, all while meeting ISO 9001:2015 and automotive functional safety requirements.
