Copper’s exceptional electrical conductivity, thermal transfer, and corrosion resistance make it indispensable for aerospace, EV battery connectors, RF components, and heat exchangers. Yet its gummy nature and work-hardening tendency demand a specialized Copper CNC Machining Service—one that balances rapid prototyping agility with production-run reliability.

This article outlines why partnering with an experienced CNC shop matters, what tolerances you can expect, and how to scale from first-off parts to 10,000+ units without sacrificing quality.

Why Copper Requires a Dedicated Machining Approach

Unlike aluminum or steel, copper (especially pure C110) is ductile and abrasive. Standard toolpaths often produce built-up edge (BUE), leading to poor surface finish and broken tools. A qualified Copper CNC Machining Service addresses this with:

    1.Specialized tool geometries (positive rake, polished flutes)

    2.High-pressure coolant (≥1000 PSI) to flush chips and reduce heat

    3.Peck drilling cycles for deep holes to prevent chip welding

    4.Rigid workholding to counteract cutting forces

According to Machining Doctor’s copper guidelines, optimal cutting speeds for C110 range from 200–400 SFM with carbide tools—significantly slower than aluminum but faster than stainless.

Prototyping vs. Production Runs: Key Differences

Aspect	Prototyping (1–50 pcs)	Production (100–10,000+ pcs)
Lead time	3–5 business days	2–4 weeks (with setup optimization)
Fixture cost	Minimal (soft jaws)	Investment in custom hard tooling
Toolpath strategy	Conservative, higher safety margins	Aggressive, fully optimized for cycle time
Inspection	Full CMM dimensional report	SPC-driven sampling with PPAP level 3
Material sourcing	Bar stock off-the-shelf	Certified mill lots with traceability
Surface finish	As-machined (≤32 μin Ra)	Polished / electropolished options

A mature Copper CNC Machining Service offers a seamless transition: the same G-code can be refined for production, while design feedback from prototypes informs tooling upgrades.

Critical Design Considerations for Copper CNC Parts

To avoid scrap and rework, follow these rules of thumb:

    1.Minimum wall thickness – 0.020″ (0.5 mm) for pure copper; 0.015″ for beryllium copper (C172) due to higher strength.

    2.Hole depth-to-diameter – Keep ≤ 4×D for standard drills; use gun drilling for deeper features.

    3.Threads – Roll-formed threads are 30% stronger than cut threads in copper.

    4.Corner radii – Avoid sharp internal corners; add 0.010″–0.020″ radius to extend tool life.

For detailed material property comparisons, refer to the Copper Development Association’s machining data.

Production-Ready Capabilities Table

Capability	Specification
Max part size	24″ × 18″ × 12″ (3‑axis) / 16″ diameter (5‑axis)
Tolerances	±0.0005″ for prototyping; ±0.001″ for production (ISO 2768‑mK)
Surface finishes	16 μin Ra (mirror) with diamond boring; standard 32–63 μin
Secondary ops	Deburring, passivation, silver plating, laser engraving
Material grades	C101, C110, C145 (tellurium), C172 (beryllium copper), C182 (chromium copper)
Inspection	In‑process probes + Zeiss CMM + vision systems

Cost Drivers and How to Optimize Them

For production runs, material cost dominates (≈40–60% of total). You can reduce per‑part expense by:

    1.Nesting multiple parts on a single fixture to reduce tool changes.

    2.Using near‑net shapes – forged or extruded copper blanks reduce roughing time by 70%.

    3.Specifying C145 (tellurium copper) for high‑speed screw machine work—it machines 30% faster than pure copper.

    4.Batch ordering – consolidate multiple SKUs into one setup campaign.

A reputable service provider will also share DFM feedback (Design for Manufacturing) before quoting, ensuring you don’t pay for unnecessary tight tolerances.

From Prototype to Production: A Case Workflow

    Step 1 – Submit 3D CAD (STEP/IGES) and 2D drawing with critical callouts.

    Step 2 – Shop runs simulation and provides a process FMEA.

    Step 3 – First‑article inspection (FAI) report with dimensional and material certs.

    Step 4 – Upon approval, production fixtures are milled and verified.

    Step 5 – In‑process gauging every 50 parts; final CMM audit before shipment.

This structured approach, endorsed by ASME’s machining standards, guarantees repeatability across batches.

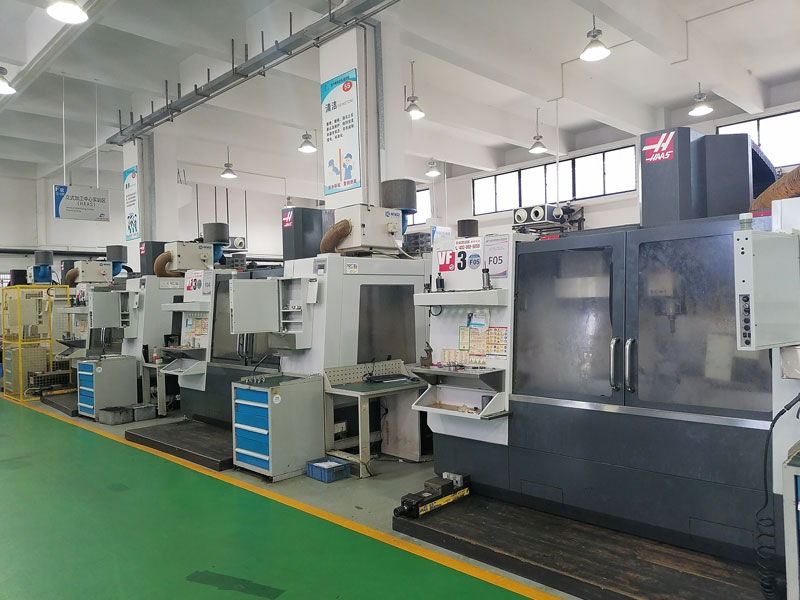

Why Choose a Specialized Copper CNC Machining Service?

Generalist shops often reject copper jobs due to tool wear and unpredictable chip control. A dedicated service invests in:

    ●  Tool‑coating R&D – e.g., diamond‑like carbon (DLC) for extended tool life.

    ●  Thermal management – spindle chillers and coolant temperature control to hold ±0.0005″.

    ●  In‑house annealing – stress‑relief for parts with heavy material removal.

     For prototyping, you get rapid turnaround and design consultation. For production, you gain economies of scale without compromising on ISO 9001:2015 quality systems.

Final Takeaway

Whether you need five functional prototypes for a new power module or 5,000 connectors for an automotive line, the right Copper CNC Machining Service acts as your extension—not just a vendor. Prioritize shops that offer transparent quoting, real‑time production tracking, and a clear migration path from low‑volume agility to high‑volume efficiency.
