Introduction

CNC turning with ±0.002mm precision is critical for aerospace components where safety and performance are paramount. In the aerospace industry, even microscopic deviations can lead to catastrophic failures. That’s why manufacturers demand ultra-tight tolerances for turning parts such as engine shafts, landing gear pins, and hydraulic fittings. For a deeper look at our capabilities, visit our precision machining services . This article explores how advanced CNC turning achieves ±0.002mm accuracy and why it matters for aerospace applications.

Why ±0.002mm Tolerance Matters in Aerospace Turning Parts

The ±0.002mm tolerance in aerospace turning parts ensures reliable fit and function in extreme conditions. Aerospace assemblies often operate under high vibration, temperature swings, and mechanical stress. A deviation as small as 0.005mm can cause fretting, loosening, or premature wear. By holding ±0.002mm, CNC turned parts maintain interference fits, seal integrity, and dynamic balance. See a typical example in follow image.

Figure 1: Aerospace-grade CNC turned part

How CNC Technology Achieves Sub-Micron Accuracy

Advanced CNC lathes and tooling are essential to achieve such micro-level precision consistently. Modern multi-axis CNC turning centers use linear scales, thermal compensation, and ceramic bearings to eliminate backlash and thermal drift. Tool selection—such as PCD or CBN inserts—combined with rigid workholding and constant coolant flow, reduces cutting forces and vibration. For official machining standards, refer to AS9100D by SAE International. Additionally, CAD/CAM software simulates toolpaths to enable repeatable ±0.002mm results even on difficult materials like Inconel or titanium.

Quality Control Measures for Validating ±0.002mm Tolerances

Quality control measures like CMM inspection and laser measurement verify every aerospace turning part. After machining, each batch undergoes 100% inspection using coordinate measuring machines (CMMs) with sub-micron probes. Optical comparators and laser micrometers check diameters, roundness, and surface finish (typically Ra ≤ 0.4 μm). Any part outside ±0.002mm is rejected. You can review our QC workflow in Figure 2.

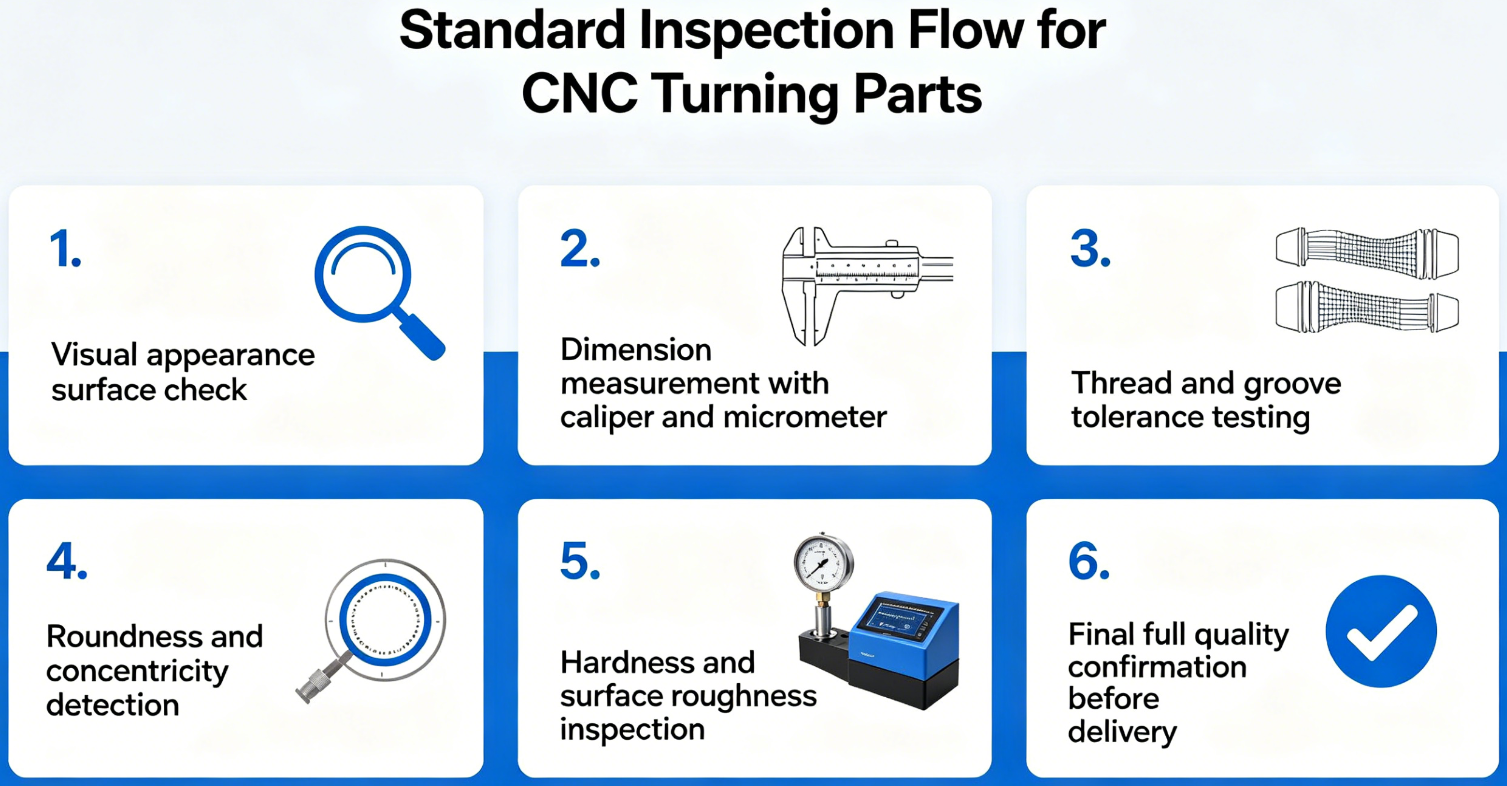

 Figure 2: CNC turning inspection process

Benefits of Outsourcing to a Certified CNC Turning Shop

Choosing a trusted CNC turning partner with aerospace certifications guarantees compliance and traceability. A certified shop (e.g., AS9100D, ISO 9001:2015) provides material certificates, first-article inspection reports (FAIR), and non-destructive testing (NDT) records. They also maintain ±0.002mm accuracy from prototyping to full production. Ready to start your project? Request a quote via our quote page.

Common Questions About CNC Machining ±0.002mm

Q1: What materials can be CNC turned to ±0.002mm for aerospace?
A1: Aluminum (7075, 6061), stainless steel (17‑4PH, 304), titanium (Grade 5), Inconel 718, and brass. Each requires specific cutting speeds and tool coatings.

Q2: How do you measure ±0.002mm accuracy in production?
A2: Using air gauges, laser micrometers, and CMM probes with 0.0001mm resolution, in a temperature‑controlled environment (20°C ±1°C).

Q3:  Is ±0.002mm a chievable for long, slender turning parts?
A3: Yes, with steady rests, balanced cutting parameters, and multiple finishing passes. The length‑to‑diameter ratio should ideally be ≤8:1.

Q4:  What is the typical surface finish for such tight tolerances?
A4: Typically Ra 0.2–0.4 μm (N5–N6). Achieving both ±0.002mm and fine finish may require a separate burnishing or superfinishing step.

Conclusion

Achieving ±0.002mm in CNC turning for aerospace parts is not just a specification—it is a reliability guarantee. From engine components to actuation systems, this precision reduces failure risks and extends service life. By combining advanced CNC lathes, in‑process monitoring, and certified quality systems, manufacturers can consistently deliver aerospace turning parts that meet the industry’s most demanding standards.
