For product developers and engineers, the journey from concept to physical part has long been bottlenecked by one daunting obstacle: the cost of tooling. Injection molding and die casting require custom molds that can cost anywhere from $10,000 to over $100,000, with lead times stretching from 4 to 16 weeks. This capital-intensive barrier often stalls innovation, especially for startups and small-batch production runs. But what if you could skip the mold investment entirely and receive functional prototypes in days?

The Economic Case for CNC Prototyping

CNC machining offers a fundamentally different economic model. Instead of paying for a dedicated mold that locks your design into a single geometry, CNC prototyping uses a subtractive process—cutting solid blocks of plastic or metal into your desired shape. The key advantage? Zero tooling fees. Whether you need one part or fifty, your cost per part remains stable without amortizing a massive upfront investment.

As the table illustrates, for quantities under 100 units, CNC machining is overwhelmingly more economical. It’s not just about money—it’s about preserving design flexibility.

How Rapid Prototype CNC Machining Works: A Streamlined Workflow

The process from digital file to physical part is remarkably efficient. Below is a typical workflow that highlights the speed and simplicity of the CNC prototyping process.

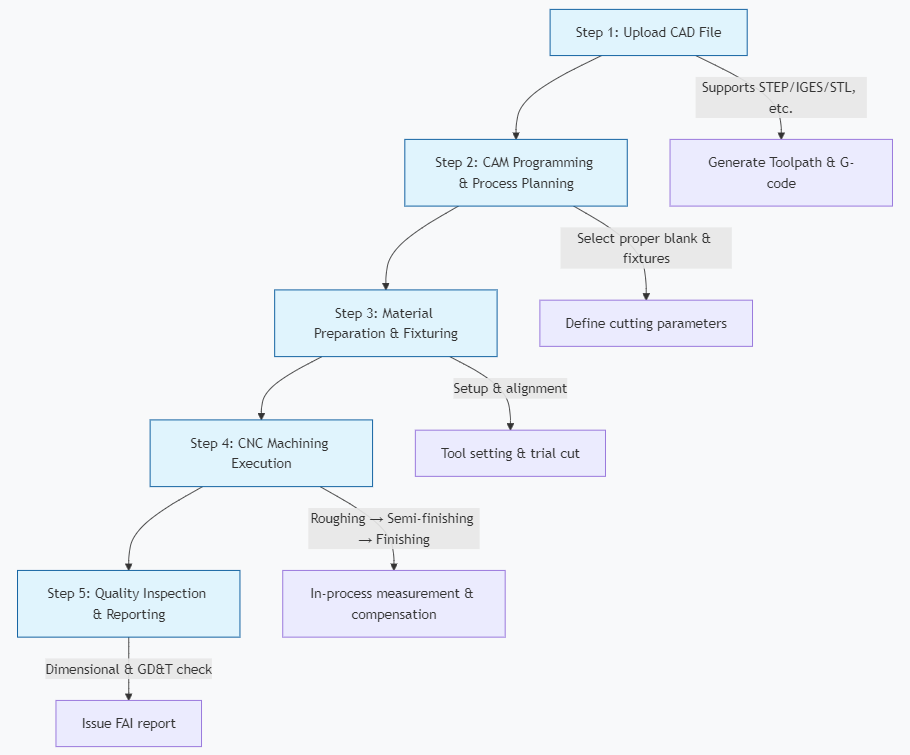

Figure 1: A typical 5-step CNC prototyping workflow—from CAD upload to final quality inspection.

Design Iteration: Compare Flexibility at a Glance

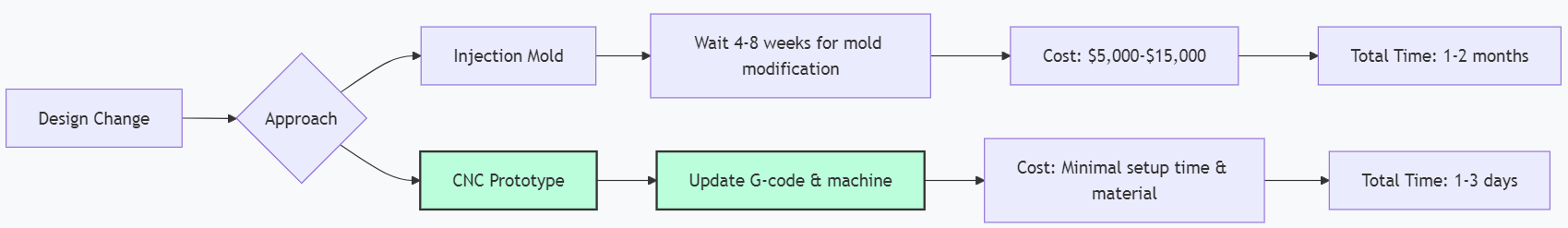

The ability to iterate is where CNC prototyping truly shines. The following diagram contrasts the design iteration cycles between traditional tooling and CNC machining.




Client Testimonial: A Real-World Perspective

“We were preparing to invest $45,000 in an injection mold for a medical device housing. The team at Start Precision suggested CNC prototyping instead. Not only did we save the entire mold cost, but we also refined the design three times based on functional testing—all within 4 weeks. We’re going to market with a superior product and a fraction of the upfront risk.”

— Michael Torres, Senior R&D Engineer at MedInnovate Solutions

Time-Line Case Study: Automotive Sensor Bracket

This time-line illustrates a real project where CNC prototyping drastically reduced time-to-market.

    ◆ Day 1 (Monday, 9 AM): CAD model (STEP file) uploaded for quote.

    ◆ Day 1 (Monday, 2 PM): DFM feedback received; minor geometry adjustments for tool accessibility.

    ◆ Day 2 (Tuesday): Material stock (6061-T6 Aluminum) loaded. CNC machine setup begins.

    ◆ Day 3 (Wednesday): First article inspection (FAI) completed. Dimensional accuracy verified within ±0.005 inches.

    ◆ Day 5 (Friday, 10 AM): 5 fully functional prototypes shipped via overnight courier.

    ◆ Day 6 (Saturday): Design team conducts stress testing; identifies one minor rib modification.

    ◆ Day 7 (Following Monday): Revised CAD file sent. New batch of 5 updated prototypes machining begins.

    ◆ Day 9 (Wednesday): Updated prototypes arrive. Testing passes. Final design locked.

Total project time from initial inquiry to final validated part: 9 days. Using traditional tooling, this process would have taken over 12 weeks and cost thousands more for the initial mold alone.

Your Path to Faster, Affordable Innovation

Rapid prototype CNC machining is more than a cost-saving measure—it’s an enabler of innovation. It allows you to test form, fit, and function with production-grade materials like aluminum, steel, PEEK, and ABS, all without being held hostage by tooling lead times or costs. By incorporating this agile approach, companies can derisk product development, fail fast and cheaply, and ultimately bring better products to market. For high-quality, precision prototypes that align with your production goals, visit the expert team at Start Precision to explore tailored solutions for your project.

Upload your CAD file and get an instant prototype quote today.

Frequently Asked Questions

1. What is the minimum order quantity (MOQ) for CNC prototyping?
There is no MOQ. CNC machining excels at producing single parts to low-volume batches (1-100+ units) economically. Each part is machined directly from a solid block, so setup costs are minimal regardless of quantity.

2. How does the cost of CNC prototyping compare to 3D printing?
For functional prototypes requiring tight tolerances (±0.001″) and production-grade materials, CNC is often more cost-effective and stronger than 3D printing (SLA/FDM). 3D printing is cheaper for very complex, organic shapes but typically lacks the mechanical properties for rigorous testing.

3. Which materials are available for CNC prototyping?
A wide range: engineering plastics (ABS, PC, POM, PEEK, Ultem) and all common metals (Aluminum 6061/7075, Stainless Steel 304/316, Titanium, Brass, Copper). Material choices can mirror your final production material.

4. How long does CNC prototype machining take?
Standard lead time is 3 to 7 business days for most parts. This includes programming, machining, and quality inspection. Rush services (1-3 days) are often available for simple parts.

5. Can CNC prototypes be used for production?
Absolutely. Many companies use CNC machining for bridge production (fulfilling orders while tooling is being prepared) or for end-use parts in low-volume, high-value industries like aerospace and medical devices. The parts are identical in material properties to the final design.
