Robot arms, grippers, end-effectors, wrist housings, and linear-axis brackets rarely fit a catalogue. Humanoid robots add another layer: dozens of custom joints, actuator housings, limb links, and dexterous-hand parts per unit. When a robot cell has to hit cycle-time and repeatability targets, the mechanical interface between servo, reducer, and frame becomes a custom problem. Sourcing non-standard robot parts CNC factory direct supply keeps the drawing, the machine, and the inspection report inside one building.

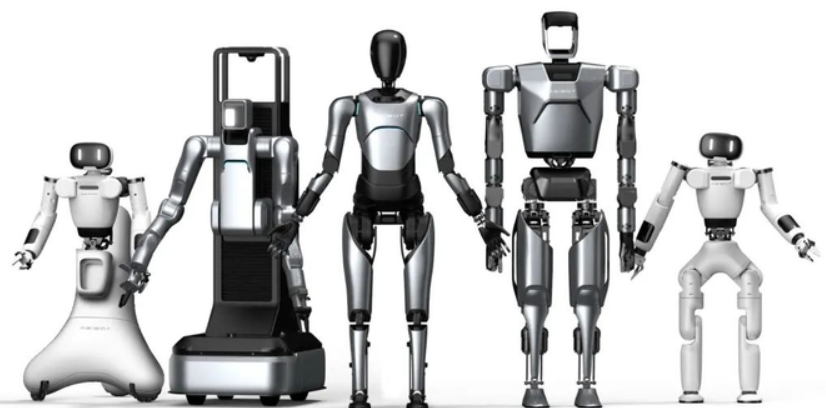

Humanoid Robot Parts You Can Source Factory-Direct

Humanoid robots are not a single product; they are a stack of precision interfaces. According to humanoid robot designs, the highest-value CNC parts include:

Common materials include 7075-T6 aluminium, Ti-6Al-4V titanium, 17-4PH stainless steel, and PEEK for insulating or low-mass parts.

Why Direct Supply Changes the Equation

    ●  Tolerance ownership — ±0.01mm fits are only repeatable when one shop controls machining and metrology.

    ●  Fast iteration — prototype-to-production drawing changes are handled by one engineering team.

    ●  Traceability — material certificates, heat-treatment records, and CMM reports travel with every batch.

    ●  Cost control — no trading margin, no re-shipping between subcontractors.

Robot accuracy is defined at system level by standards such as ISO 9283, but system accuracy is built from part-level accuracy. A 0.01 mm error in a humanoid wrist adapter becomes amplified positional error at the tool centre point.

Equipment Parameters Behind a Direct-Supply Quotation

A direct-supply quotation is only credible when the machine list supports the print. At Start Precision, factory-direct pricing and 0.01 mm tolerance commitments for humanoid robot parts are backed by an installed base of DMG five-axis machining centers, Mazak and HAAS vertical machining centers, Takisawa turning centers, Sodick wire and sinker EDM machines, and MICCO profile grinders. The table below lists the specific models,and roles of these machines in humanoid robot part production.

The full Precision equipment list confirms the machines are on the floor before a PO is released.

Conclusion

Non-standard robot parts are a tolerance, not a commodity. Buying them through a factory-direct supply chain shortens the loop between drawing revision and finished part, and it puts inspection data in your hands instead of a broker’s. Confirm the machine list, confirm the metrology, then confirm the price.

Contact us to discuss your manufacturing needs — send your 3D and CAD drawings and we will return a process plan, tolerance review, and quotation.

FAQ

1. What humanoid robot parts can be CNC machined?
Joint housings, actuator cases, harmonic reducer cups, limb links, wrist and ankle brackets, dexterous finger links, palm bases, sensor mounts, battery trays, and foot soles.

2. What is the minimum order quantity for non-standard robot parts?
Prototype quantities of 1–5 pieces are accepted for most milled and turned robot components; EDM and grinding parts are usually quoted from 10 pieces upward.

3. What lead time applies to custom humanoid robot components?
Standard lead time is 7–12 days for prototypes and 15–25 days for small-batch production, depending on material and finishing.

4. Do you provide inspection reports?
Yes — dimensional reports, CMM data, material certificates, and hardness or coating records are supplied with shipment on request.
